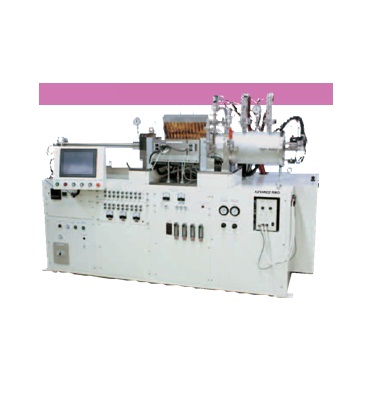

Iron Steel / Steel Sheet Evaluation System : Continuous Annealing System for Steel Sheet CAS series
Heat treatment simulation for steel sheet
CAS series realizes high speed heating and cooling, direct temperature control to a test sample, and simple atmosphere generation by using an Infrared Gold Image Furnace.
It enables to make heat treatment simulation on the process at high precision, which has been difficult with steel materials so far. It supports general heat treatment testing up to process heat treatment simulation testing on thin steel sheet, high tensile strength steel sheets, stainless steel sheets, and magnetic steel sheets
Applications
• Continuous annealing simulation testing for thin steel sheet
• Annealing testing, surface treatment testing under various atmospheres.
• Heat treatment testing in steel sheet aging/deposition process
Specifications
|
Temperature range |
100 °C ～ 1150 °C (max.)*1 |
|
Sample size*2 |
W 70 × L 200 × t 0.5 ～ 3 (mm) |
|
Atmosphere |
Vacuum, Inert gas, Air |
|
Cooling Method |
Gas, Mist (2 fluid/gas/water mix), Water |
*1 It is available to support different sample size from above-mentioned. Please contact us.
*2 Temperature range changes depending on the sample thickness.
